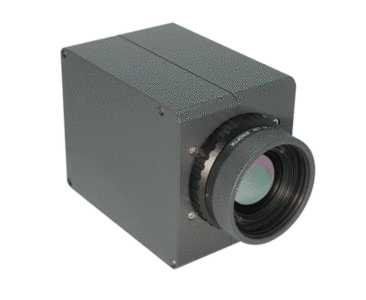

InfraTec thermal imaging camera

VarioCAM® hr head 400 (600) Series cameras are designated for utilization in solutions for metallurgy. There is also the possibility of installation VarioCAM® HD head cameras with higher resolution.


Resolution of VarioCAM ® hr head 600 Series cameras is 640x480 pixels, resolution of VarioCAM ® HD head is 1024x768 pixels.	Thermal imaging cameras are equipped with interchangeable lenses with different focal length for adaptation in different environment.	Housing is designed for operation at high temperatures and pollution. For this purpose the housing is equipped with lens cooling and cleaning system using compressed air. Before compressed air input into the housing it subject to purification with an external three-level filter.

Specifications:

Spectral range	(7.5 ... 14) µm
Sensor	Microbolometer, uncooled, resolution 384 х 288
Range of measured temperatures	-40 ... 1,200°С (optional > 2,000 °С)
Accuracy	±1°С or ±1%
IR frame frequency	50/60 Hz
Standard lens (viewing angles)	1.0/25 mm (30 x 23)°
Pictures storing	SD card (optional FireWire (IEEE 1394), Gigabit Ethernet)
Dynamic range	16 bit
Interfaces	PAL/NTSC-FBAS, S-Video, RS232
Operating temperature, protection	(-15 ... 50)°С, IP65
Dimensions, weight	133 x 91 x 110 mm, 1,3 kg with standard optics

Switching cabinet contains industrial computer with preinstalled software, monitor, control devices (keyboard and mouse) and a set of relay modules for power supply to the system and external devices.

For each system version (slag detection, monitoring of lining status) there is a special software package. Flexibly configurable software allows achieve high accuracy of measurement and processing of thermal images received from cameras.
